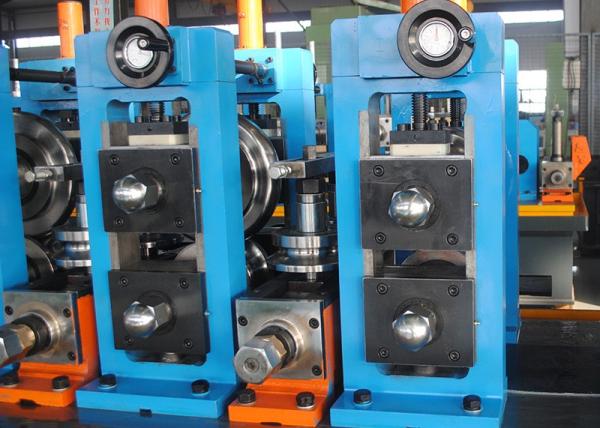

100m/Min Blue Automatic Tube Mill Line Welded Pipe Mill High Efficiency
Production process:
Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table→hydro testing→end facing for API standard we can equiped online testing equipments, like Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.
100m/Min Blue Automatic Tube Mill Line Welded Pipe Mill High Efficiency for Round Pipe Machine General Introduction:
HG63.5x4.0 (2.5”)high frequency welded pipe production line is used to manufacture welded steel pipe of Φ19.7mm-Φ63.5mm, square pipe 16x16-50x50mm, with 1.2mm-4.0mm of wall thickness. After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
100m/Min Blue Automatic Tube Mill Line Welded Pipe Mill High Efficiency Parameters and Specifications:
Material Specifications
| Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤380Mpa,σs≤275MPa |
| strip width | 50～240mm |
| strip thickness | 1.2-4.0mm |
| I.D of Coils | Φ508mm |
| O.D of Coils | φ1800mm |
| Coil Weight | ≤3.0T |
Welded Pipe Specification
| Round Pipe Diameter | 19.7-63.5 |
| pipe thickness | 1.2-4.0 |
| Finish pipe length | 4-6m |
| Cut length accuracy | ±2mm |
| Forming speed | 100m/min |
About Factory:
Our Service
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
