Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

Name: Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine
Brand: Hebei Tengtian
Price: 100000 USD

Wholesale Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine from china suppliers

Brand Name : Hebei Tengtian

Model Number : 2500 X9 mm

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, , T/T

Supply Ability : 1

Delivery Time : 1 month

Packaging Details : container

Name : Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

Max Width : 2500mm

thickness range : 9 mm

Cutting currency : ±2 mm

Cutting Speed : 0-30 m/min

The loading`bearing capacity of the decoiler : 50T

Cutter motor : 137kw

Coiler motor : 120kw

Price : $100000 to $1 million

Contact Now

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

I. Main Technical parameter:

1. Material specification

Coil Thickness:Max 9 mm

Coil Width:Max 2500mm

Coil Weight:≤ 50 t

Inner diameter:Φ508/610/760mm

Outer diameter: ≤Φ2000mm

Width precision: ±2 mm(thickness 2.0-3.0) ±0.20 mm(thickness 3.1-9.0)

Burr accuracy:≤5%

II. Equipment composition

No.	Name	Quantity
1	Coil car	1 Set
2	Uncoiler	1 Set
3	Pressure leading device	1 Set
4	Clamp&Straightener	1 Set
5	Shearing	1 Set
6	1#Accumulator	1 Set
7	Guiding device	1 Set
8	Pinch roll	1 Set
9	Slitter machine	2 Sets
10	edge rewinder	1 Set
11	Wear tape table and material tail pressing plate	1 Set
12	2#Accumulator	1 Set
13	Seperation device	1 Set
14	Tension plate	1 Set
15	3-roll tension burr extruding machine	1 Set
16	Steering roller and feed head guide plate	1 Set
17	Recoiler+Coiling support	1 Set
18	Unloading car	1 Set
19	Knife disc, knife pad, unloading apron, separating disc, separating disc pad and other process parts	-------

III. Other Model Of Slitting Line

Model (mm)	Plate thickness (mm)	Plate width (mm)	Steel coil weight (T)	Finished width (mm)	Shear article number	Shear speed(m/min)
3×500	0.4-3	100-500	7	≥30	≤6	140
3×600	0.4-3	100-600	8	≥30	≤6	140
3×800	0.5-3	200-800	10	≥30	≤8	140
3×1250	0.5-3	400-1250	15	≥30	≤10	120
3×1500	0.5-3	600-1500	20	≥30	≤12	120
3×1800	0.5-3	900-1600	30	≥40	≤13	120
4×1600	0.5-4	900-1600	30	≥60	≤13	120
6×1600	1-6	900-1600	30	≥60	≤10	110
8×2000	2-8	900-2000	35	≥70	≤6	100
10×2200	3-10	900-2200	35	≥80	≤5	80
12×2200	3-12	900-2200	35	≥100	≤5	50
16×2500	4-16	900-2500	35	≥100	≤5	40
20×2500	6-20	900-2500	35	≥100	≤4	40

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine

Product Tags:

30m/min Steel Slitter

High Speed Steel Slitter

30m/min Steel Slitting Machine

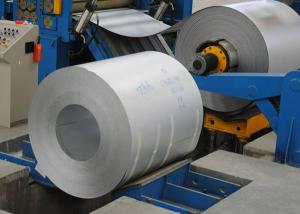

Heavy High Speed Steel Slitter For Stainless Steel Aluminum Steel Slitting Machine Images
